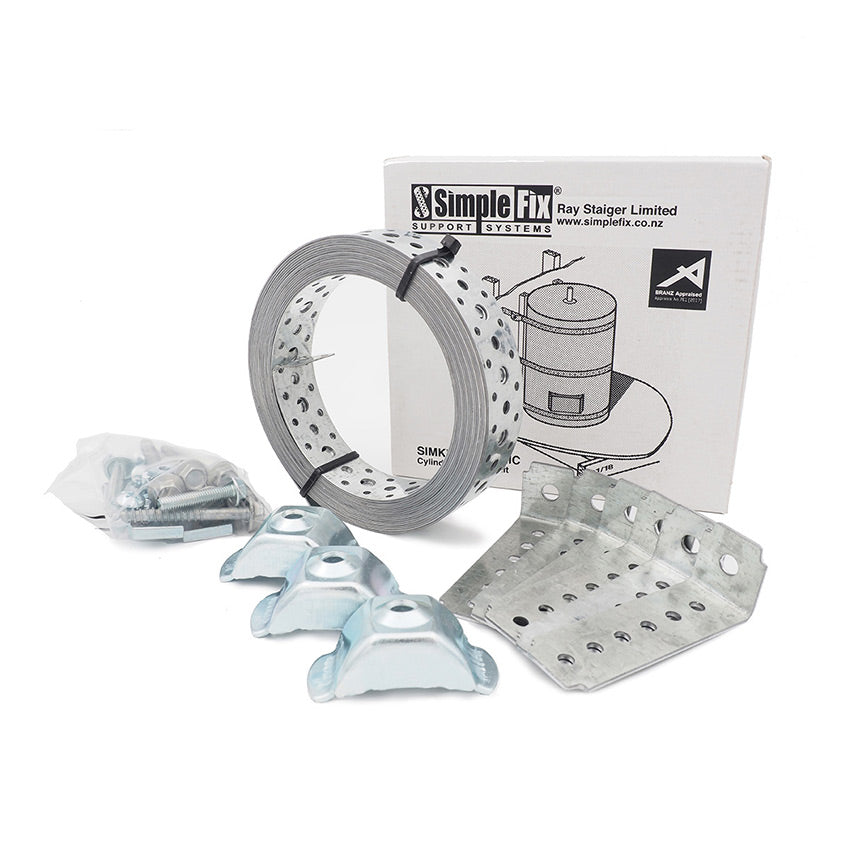

[HWC1008] SimpleFix Seismic Cylinder Restraint Kit 3 Strap

The SimpleFix Seismic Cylinder Restraint Kit 3 Strap provides earthquake protection and security for hot water cylinders and water storage vessels, designed and checked by Registered Engineers in accordance with seismic design code NZS 1170.5:2004.

The kit consists of 6 metres of perforated G550 (0.75mm) high tensile galvanised steel strap, along with all mounting brackets, bolts, screws, and tensioning devices required to complete a 3-strap installation. This kit is suitable for internal, dry environments only, and is design-checked for water storage vessels up to 700 litre capacity, complying with Documents B1 and B2 prepared by the Department of Building and Housing, in accordance with Section 22 of the Building Act 2005.

BRANZ Appraised, this kit is fit for purpose and complies with the New Zealand Building Code when used, designed, installed, and maintained as set out in the Appraisal. All components must be used together for code compliance.

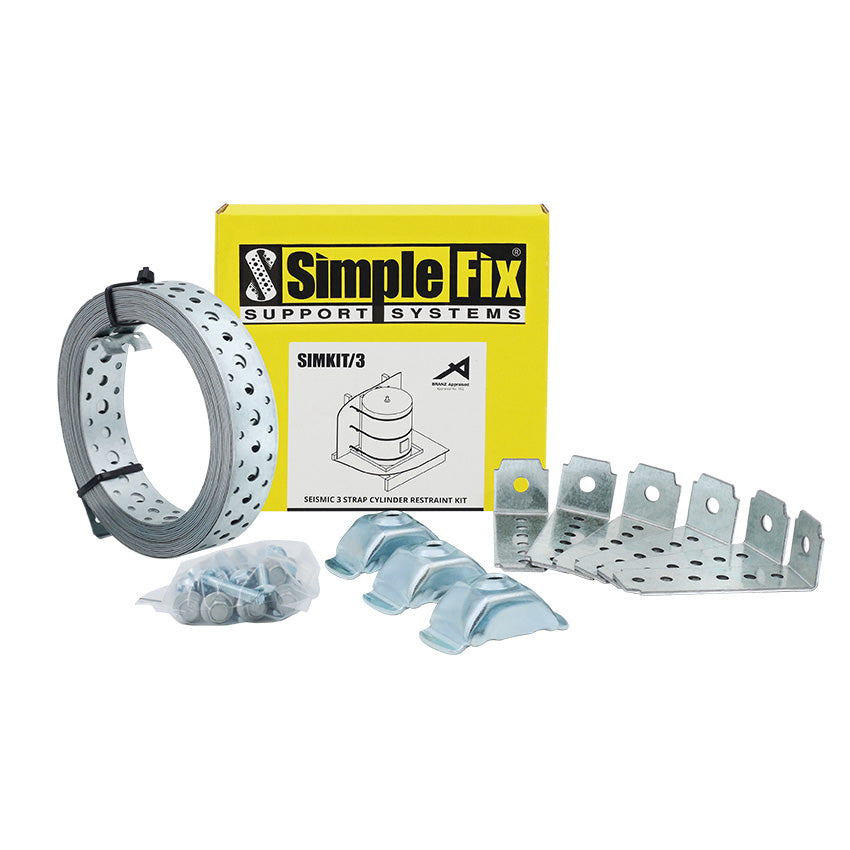

Includes:

• 6m of perforated G550 (0.75mm) galvanised steel strap
• 6 x mounting brackets
• 6 x 14g x 55mm Type 17 screws
• 12 x M5 x 12mm bolts and nuts
• 3 x tensioning devices
• Installation instructions

Features:

• G550 high tensile galvanised steel construction
• BRANZ Appraised
• Suitable for internal, dry environments only
• Complies with NZS 1170.5:2004 seismic design code
• Design-checked by Registered Engineers
• Suitable for water storage vessels up to 700L

Vessel Capacity Guide:

• Up to 200L – up to 3 straps
• 200-360L – up to 4 straps
• 360-500L – 4 straps
• 500-600L – 5 straps
• 600-700L – 6 straps

Ideal for:

• Seismic restraint of hot water cylinders and storage vessels
• New installations requiring code-compliant restraint
• Residential and commercial building compliance
• Council consent documentation requirements

The SimpleFix Seismic Cylinder Restraint Kit 3 Strap provides a reliable, BRANZ Appraised, code-compliant solution for seismically restraining hot water cylinders.

BRANZ Appraised compliance. Engineer-checked design. Reliable everyday installation.
