[PPF1001] PVC Pressure Elbow 90 Degree

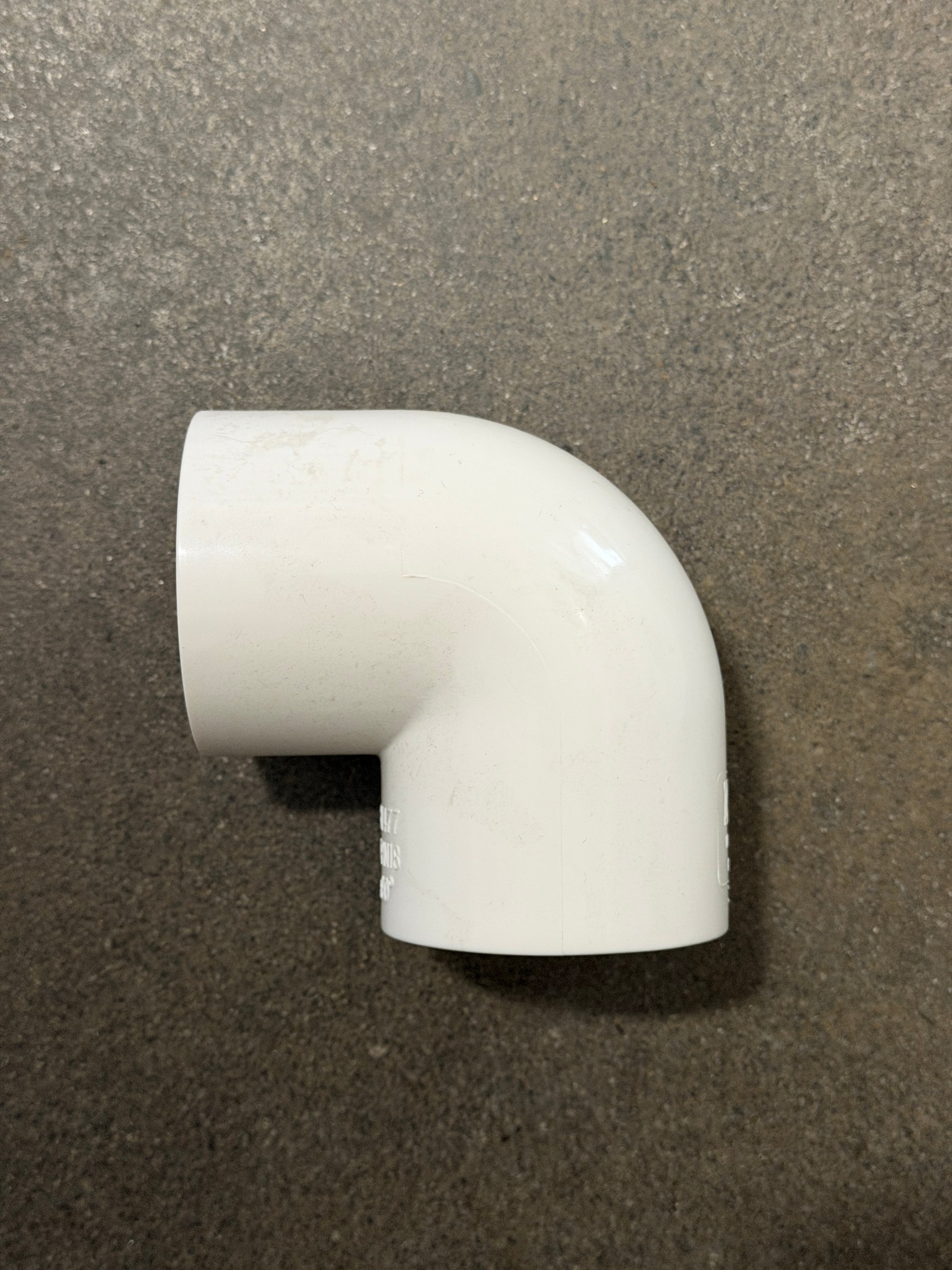

PVC Pressure Elbow 90 Degree

The PVC Pressure Elbow 90 Degree is a solvent-weld fitting designed to change the direction of PVC pressure pipe runs, allowing the pipeline to be redirected around corners and obstacles.

Made from PVC-U, this elbow forms a permanent, leak-free joint using standard PVC solvent cement, making it a reliable choice for a wide range of pressure pipe installations. It's suitable for the conveyance of potable water, sewer mains, agricultural irrigation, and industrial effluent applications, with a maximum operating temperature of 60°C.

Available in 15mm, 20mm, 25mm, 32mm, 40mm, and 50mm sizes, this elbow carries a maximum allowable working pressure of 1800kPa (PN18) across this size range. Manufactured to comply with Australian and New Zealand Standard AS/NZS 1477, and Watermark certified, this fitting is designed for dependable, long-term performance in pressure pipe applications.

Important: PVC pressure fittings are not compatible with drainage, stormwater, or drain, waste and vent (DWV) pipe systems.

Available Options:

• 15mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm

Features:

• 90-degree elbow for redirecting pressure pipe runs
• Solvent-weld connection
• Maximum working pressure: 1800kPa (PN18)
• Suitable temperature range up to 60°C
• Manufactured to AS/NZS 1477 standards
• Watermark certified

Ideal for:

• Directional changes in PVC pressure pipe runs
• Potable water supply systems
• Agricultural irrigation
• Industrial effluent disposal
• Residential and commercial pressure pipe installations

The PVC Pressure Elbow 90 Degree provides a reliable, code-compliant solution for directional changes in PVC pressure pipe systems.

Reliable pressure fitting. Solvent-weld connection. Code-compliant performance.
