[PPF1006] PVC Pressure Faucet Socket

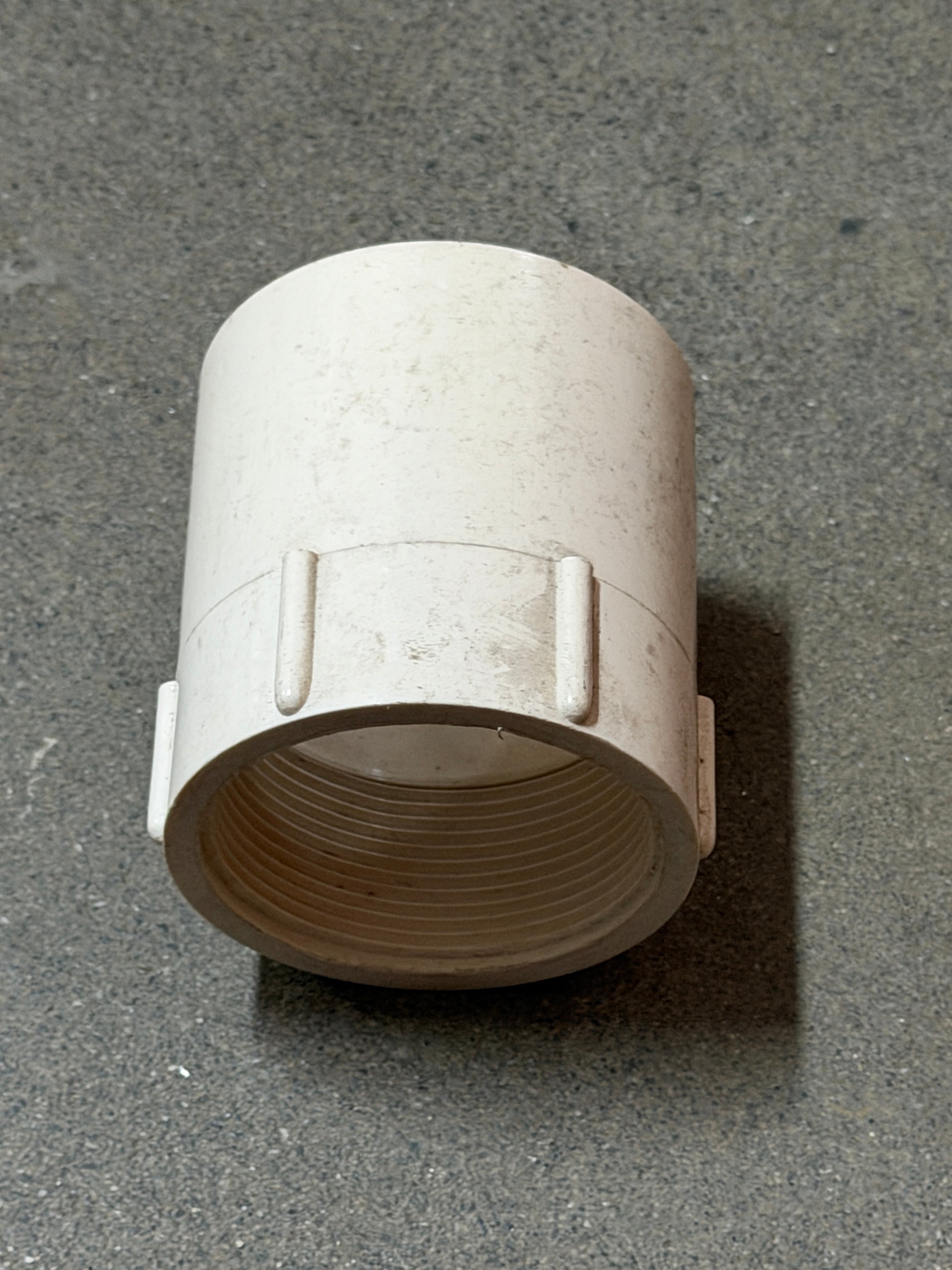

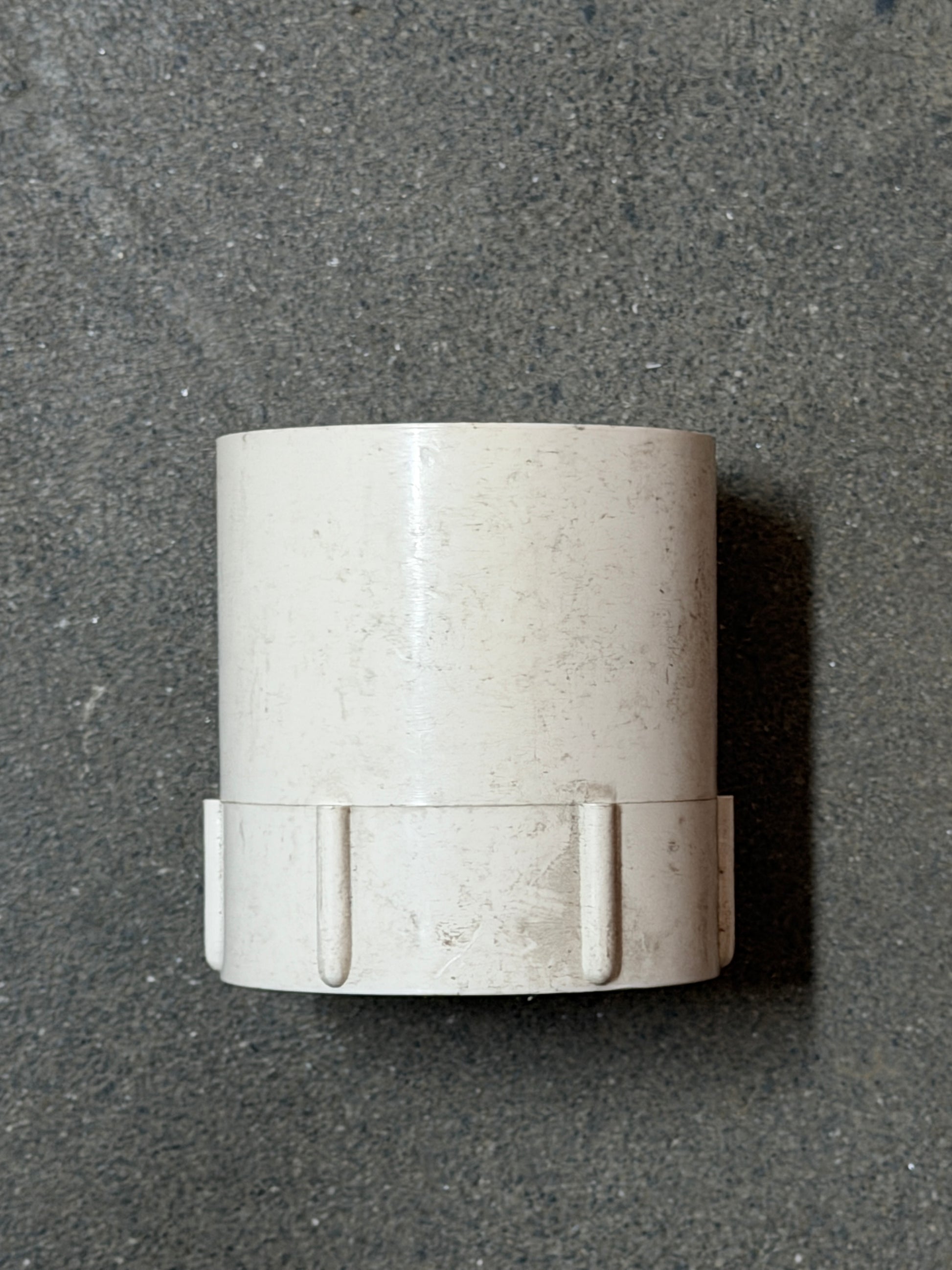

PVC Pressure Faucet Socket

The PVC Pressure Faucet Socket is a solvent-weld fitting designed to connect PVC pressure pipe to a threaded valve, tap, or fixture, combining a standard solvent-weld socket on one end with a female BSP threaded connection on the other.

Made from PVC-U, the socket end forms a permanent, leak-free joint using standard PVC solvent cement, while the female threaded end allows for a straightforward connection to threaded fittings without the need for additional adaptors. It's suitable for the conveyance of potable water, sewer mains, agricultural irrigation, and industrial effluent applications, with a maximum operating temperature of 60°C.

Available in 15mm, 20mm, 25mm, 32mm, 40mm, and 50mm sizes, this fitting carries a maximum allowable working pressure of 1800kPa (PN18) across this size range. Manufactured to comply with Australian and New Zealand Standard AS/NZS 1477, and Watermark certified, this fitting is designed for dependable, long-term performance in pressure pipe applications.

Important: PVC pressure fittings are not compatible with drainage, stormwater, or drain, waste and vent (DWV) pipe systems.

Available Options:

• 15mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm

Features:

• Solvent-weld socket with female BSP threaded connection
• Solvent-weld connection
• Maximum working pressure: 1800kPa (PN18)
• Suitable temperature range up to 60°C
• Manufactured to AS/NZS 1477 standards
• Watermark certified

Ideal for:

• Connecting PVC pressure pipe to threaded valves and fixtures
• Potable water supply systems
• Agricultural irrigation
• Industrial effluent disposal
• Residential and commercial pressure pipe installations

The PVC Pressure Faucet Socket provides a reliable, code-compliant solution for threaded connections in PVC pressure pipe systems.

Reliable pressure fitting. Solvent-weld connection. Code-compliant performance.
