[PPF1007] PVC Pressure Valve Socket

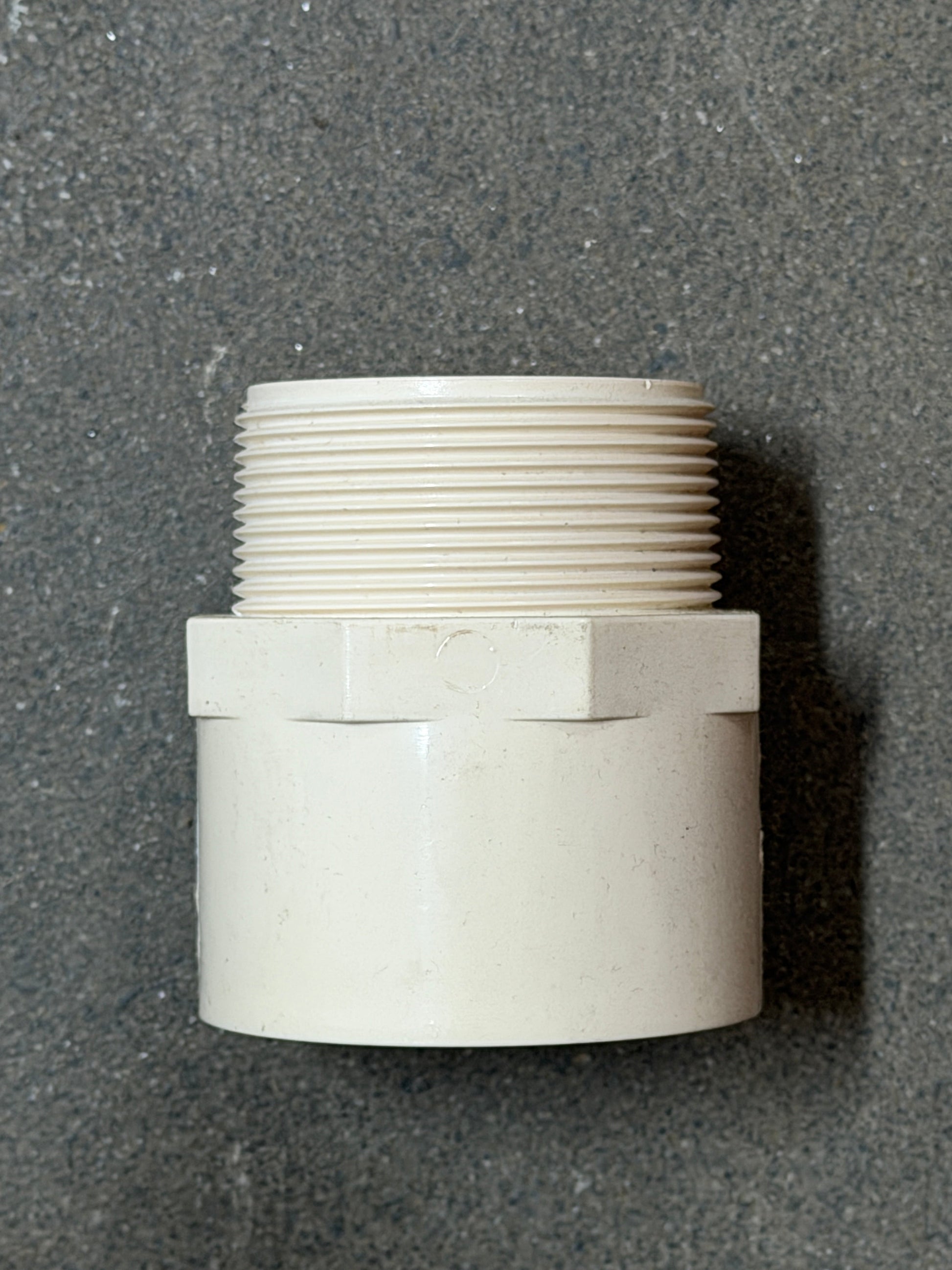

PVC Pressure Valve Socket

The PVC Pressure Valve Socket is a solvent-weld fitting designed to connect PVC pressure pipe to a valve, pump, or threaded fixture, combining a standard solvent-weld socket on one end with a male BSP threaded connection on the other.

Made from PVC-U, the socket end forms a permanent, leak-free joint using standard PVC solvent cement, while the male threaded end allows for a straightforward connection to threaded valves and fittings without the need for additional adaptors. It's commonly used to attach solenoid valves, ball valves, and pumps within irrigation and general pressure pipe systems, and is suitable for the conveyance of potable water, sewer mains, agricultural irrigation, and industrial effluent applications, with a maximum operating temperature of 60°C.

Available in 15mm, 20mm, 25mm, 32mm, 40mm, and 50mm sizes, this fitting carries a maximum allowable working pressure of 1800kPa (PN18) across this size range. Manufactured to comply with Australian and New Zealand Standard AS/NZS 1477, and Watermark certified, this fitting is designed for dependable, long-term performance in pressure pipe applications.

Important: PVC pressure fittings are not compatible with drainage, stormwater, or drain, waste and vent (DWV) pipe systems.

Available Options:

• 15mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm

Features:

• Solvent-weld socket with male BSP threaded connection
• Solvent-weld connection
• Maximum working pressure: 1800kPa (PN18)
• Suitable temperature range up to 60°C
• Manufactured to AS/NZS 1477 standards
• Watermark certified

Ideal for:

• Connecting PVC pressure pipe to valves, pumps, and threaded fixtures
• Potable water supply systems
• Agricultural irrigation
• Industrial effluent disposal
• Residential and commercial pressure pipe installations

The PVC Pressure Valve Socket provides a reliable, code-compliant solution for threaded valve and pump connections in PVC pressure pipe systems.

Reliable pressure fitting. Solvent-weld connection. Code-compliant performance.
