[PPF1009] PVC Pressure End Cap

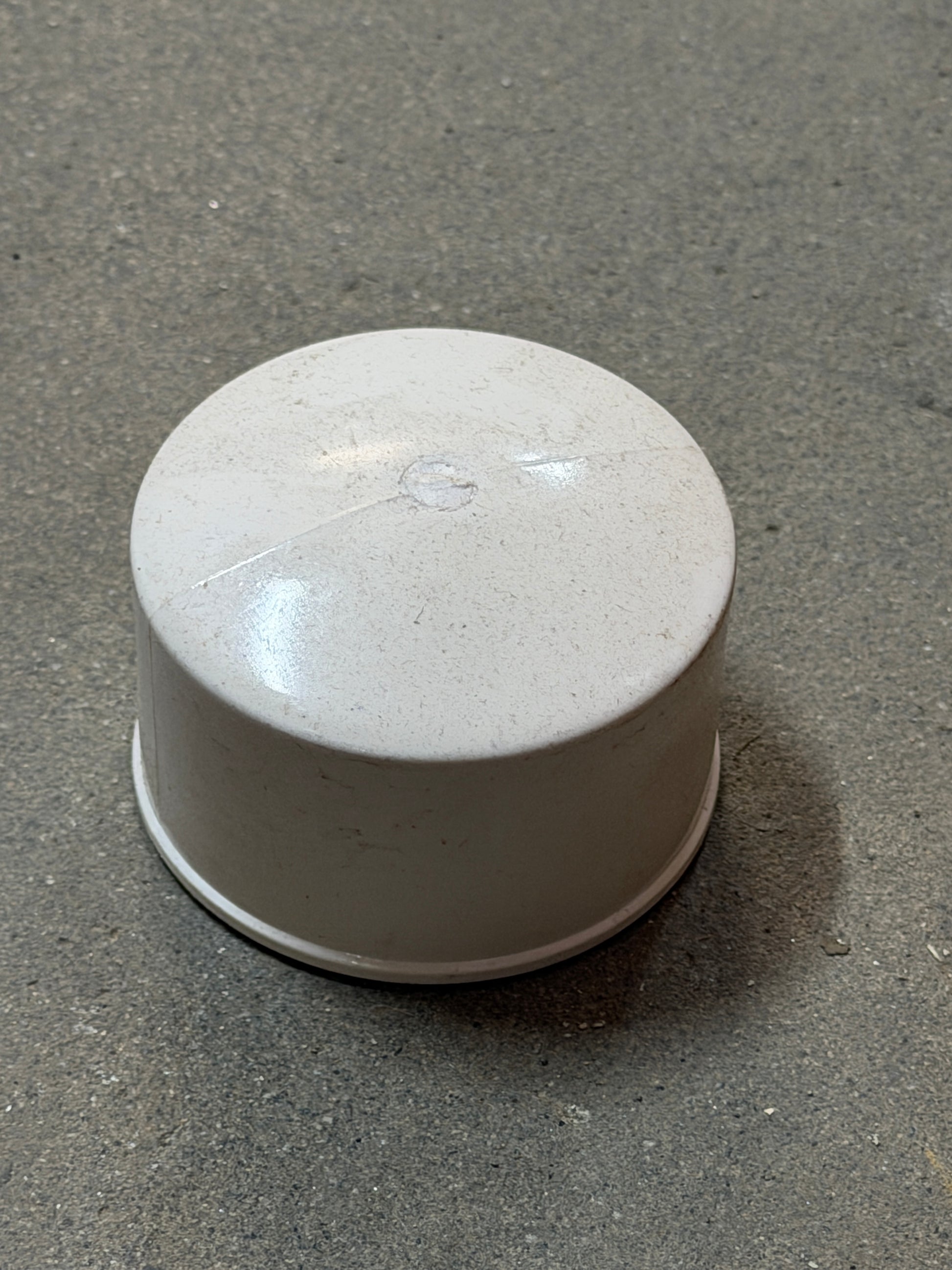

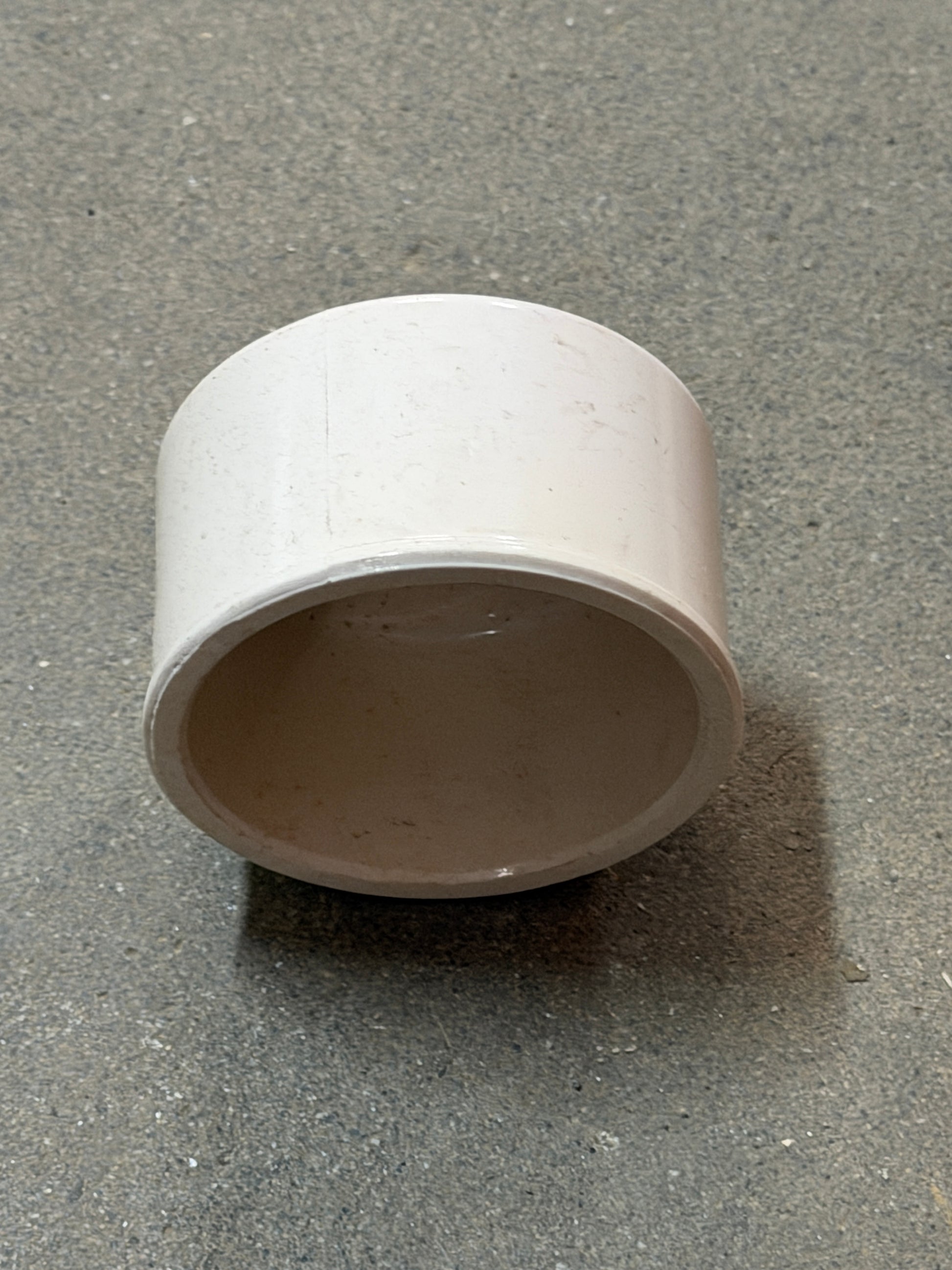

PVC Pressure End Cap

The PVC Pressure End Cap is a solvent-weld fitting designed to permanently seal off the end of a PVC pressure pipe, making it ideal for capping off unused lines, finishing off pipework, or pressure testing a system before it's put into service.

Made from PVC-U, this end cap forms a permanent, watertight seal using standard PVC solvent cement, providing a clean, secure termination point while maintaining full system pressure. It's suitable for the conveyance of potable water, sewer mains, agricultural irrigation, and industrial effluent applications, with a maximum operating temperature of 60°C.

Available in 15mm, 25mm, 32mm, 40mm, and 50mm sizes, this end cap carries a maximum allowable working pressure of 1800kPa (PN18) across this size range. Manufactured to comply with Australian and New Zealand Standard AS/NZS 1477, and Watermark certified, this fitting is designed for dependable, long-term performance in pressure pipe applications.

Important: PVC pressure fittings are not compatible with drainage, stormwater, or drain, waste and vent (DWV) pipe systems.

Available Options:

• 15mm
• 25mm
• 32mm
• 40mm
• 50mm

Features:

• Permanent seal for capping off PVC pressure pipe ends
• Solvent-weld connection
• Maximum working pressure: 1800kPa (PN18)
• Suitable temperature range up to 60°C
• Manufactured to AS/NZS 1477 standards
• Watermark certified

Ideal for:

• Capping off unused or decommissioned pipe runs
• Pressure testing before system commissioning
• Potable water supply systems
• Agricultural irrigation
• Residential and commercial pressure pipe installations

The PVC Pressure End Cap provides a reliable, code-compliant solution for permanently sealing off PVC pressure pipe ends.

Reliable pressure seal. Solvent-weld connection. Code-compliant performance.
