[PPF1011] PVC Pressure Ball Valve

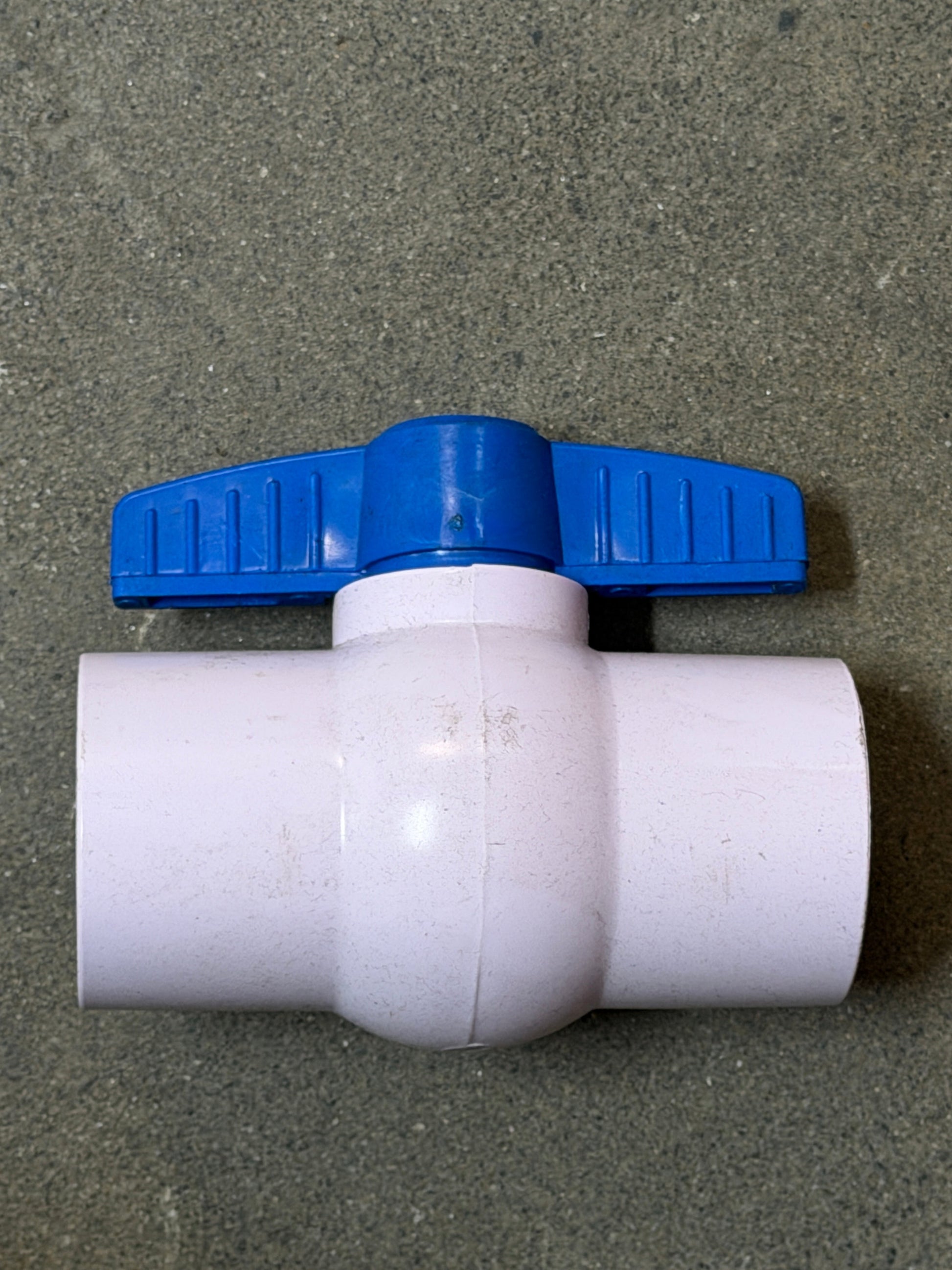

PVC Pressure Ball Valve

The PVC Pressure Ball Valve is a solvent-weld shut-off valve designed to control water flow within a PVC pressure pipe run, allowing sections of pipework to be isolated for maintenance, repairs, or irrigation control.

Made from PVC-U, this valve is installed using standard PVC solvent cement, forming a permanent, leak-free joint at each end. The simple quarter-turn ball valve mechanism allows for quick and easy on/off operation, and it's factory tested to 250psi, with a recommended operating pressure of 150psi.

Suitable for back-of-wall plumbing applications and mainline irrigation water, this valve is available across the full 15mm to 50mm size range. Manufactured to comply with Australian and New Zealand Standard AS/NZS 1477, and Watermark certified, this fitting is designed for dependable, long-term performance in pressure pipe applications.

Important: PVC pressure fittings are not compatible with drainage, stormwater, or drain, waste and vent (DWV) pipe systems.

Available Options:

• 15mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm

Features:

• Quarter-turn on/off ball valve operation
• Solvent-weld connection
• Factory tested to 250psi
• Recommended operating pressure: 150psi
• Manufactured to AS/NZS 1477 standards
• Watermark certified

Ideal for:

• Isolating sections of PVC pressure pipework
• Back-of-wall plumbing applications
• Mainline irrigation control
• Residential and commercial pressure pipe installations

The PVC Pressure Ball Valve provides a reliable, code-compliant solution for controlling and isolating flow in PVC pressure pipe systems.

Reliable shut-off control. Solvent-weld connection. Code-compliant performance.
