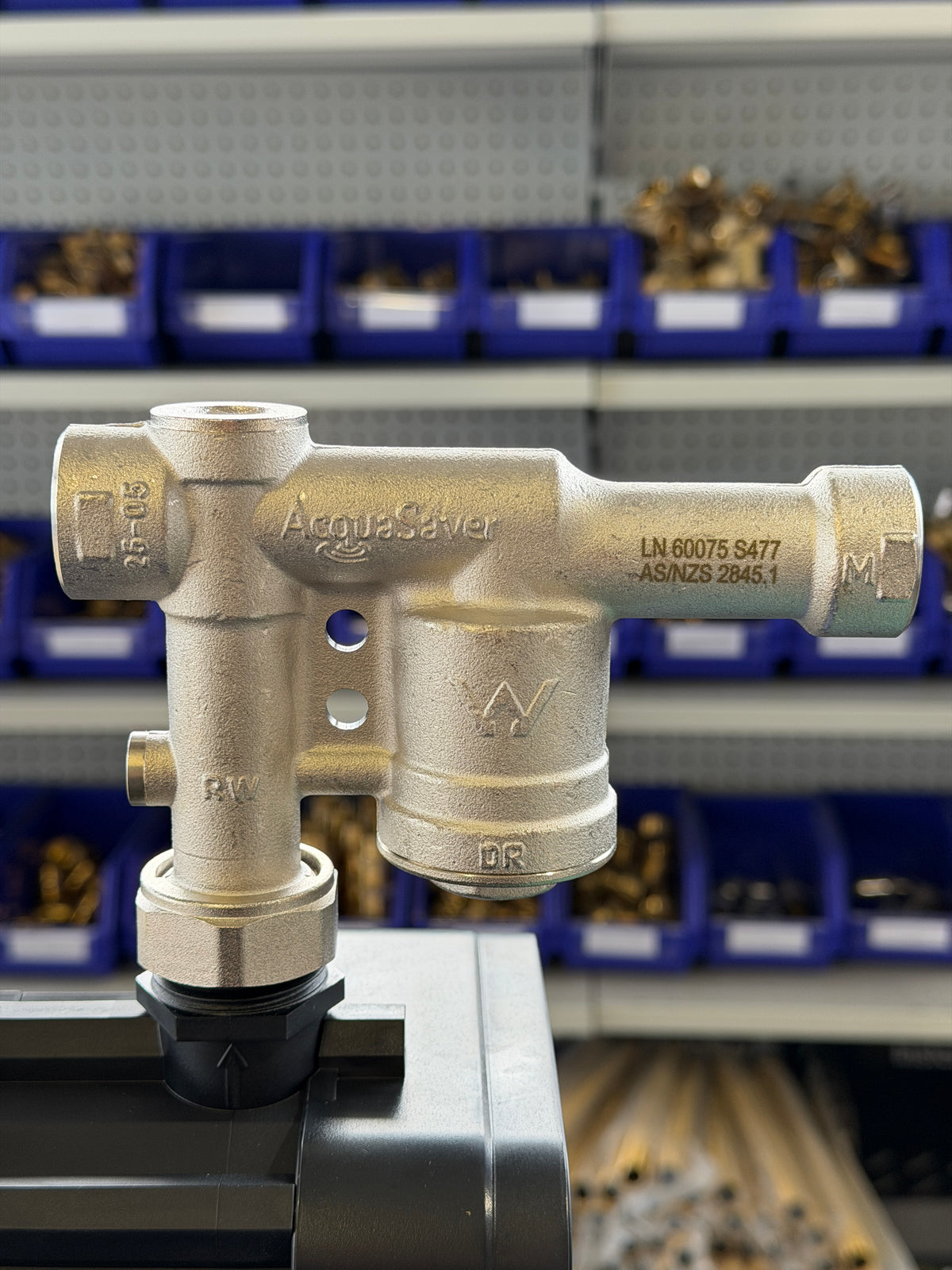

[PUM1003] Aquasaver Change Over Valve 20mm

The Aquasaver Change Over Valve 20mm is a fully automatic, hydraulically operated mains-to-rainwater changeover valve, designed for rainwater harvesting systems supplying toilets, laundry, and general household applications with automatic mains water backup.

Operating without any electrical components or power consumption, the AcquaSaver valve always prioritises rainwater over mains water when available, and automatically switches to mains supply if the rainwater tank runs low, switching back to rainwater once replenished. Suitable for up to two toilets, a washing machine, and an extra tap outlet, with dual outlets giving flexibility to use one or both as needed.

Constructed from solid brass for a fully weatherproof, long-lasting build, this valve features a built-in dual check valve for backflow prevention, and can be mounted in any position. Watermark approved and complies with AS/NZS 3500.1 when installed by a licensed plumber.

Specifications:

• Max mains pressure: 500 kPa (recommended)
• Max pump pressure: 600 kPa
• Min pump pressure: 300 kPa (recommended)
• Max flow rate: 50 L/min
• Max water temperature: 40°C
• Min water temperature: 0°C
• Pump inlet: 25mm (1") BSPF
• Mains water inlet: 20mm (3/4") BSPF
• Outlet: 20mm (3/4") BSPF
• Weight: 0.85kg

Features:

• Fully automatic, hydraulically operated changeover
• Solid brass construction
• Built-in dual check valve for backflow prevention
• No electrical components or maintenance required
• Watermark approved
• 2 year manufacturer's warranty
• Can be mounted in any position

Ideal for:

• Rainwater harvesting systems with mains backup
• Toilet, laundry, and household water supply
• Residential and light commercial applications
• Rural and off-grid water systems

The Aquasaver Change Over Valve 20mm provides a reliable, maintenance-free solution for automatically switching between rainwater and mains water supply.

Fully automatic changeover. Durable brass construction. Watermark approved.
